System specification

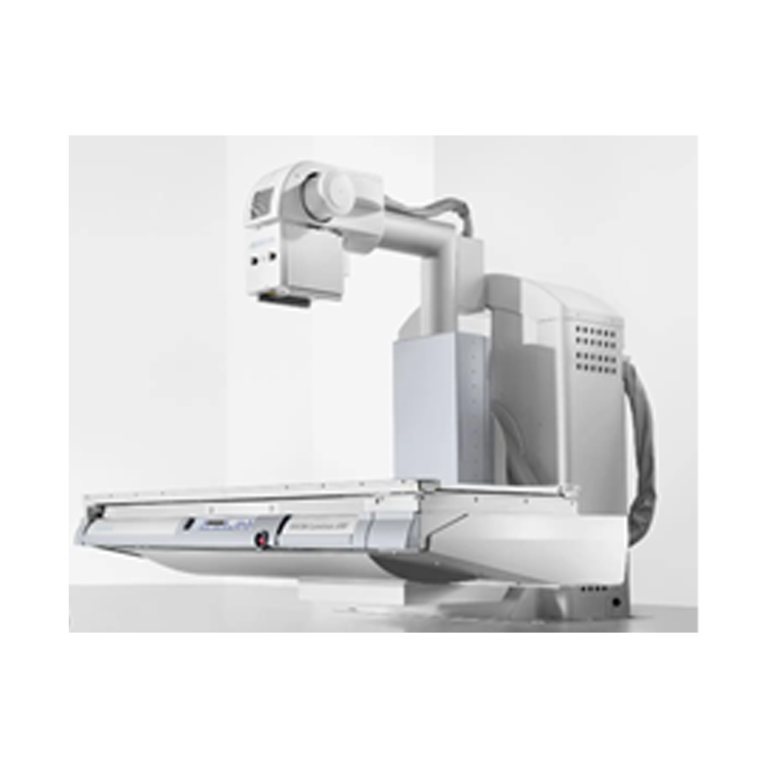

Patient table and tabletop

Table height: 48 cm to 98 cm;
Table tilt: +90°/-45°, +90°/-90° optional;
Max. patient weight: 300 kg;
Motorized longitudinal tabletop travel: 160 cm

Source-image distance (SID)

115 cm, 150 cm

Max dynamic flat detector

43 cm x 43 cm; Cesium iodide scintillator; 3.4 lp/mm

X-ray tube

Anode heat storage capacity: 580,000 J (783,000 HU)

X-ray generator

65 kW, 80 kW optional

Clinical workflow

User interface

syngo FLC

System controls

SmartTouch: touch sensitive joysticks;
SmartMove²: automatic movement to positions as defined in the organ programs

Image display/processing

MAX image quality with DiamondView Max, Digital Density Optimization and Auto Window

CARE Program

Combined Applications to Reduce Exposure incl. CAREPROFILE² and CAREPOSITION² for radiation-free collimation and positioning.

Accessories / Options

Ysio Max ceiling suspended X-ray tube

Complete system operation with control of generator, tube and imaging system from a single integrated console (MAXtouch) or the system control console.

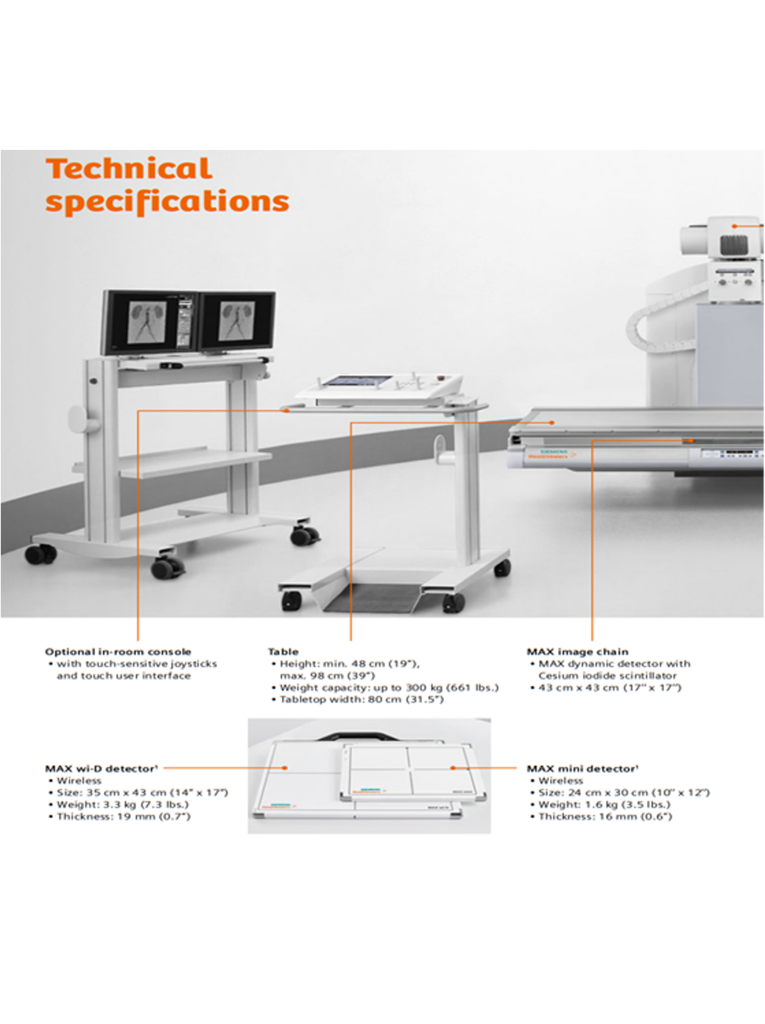

MAX wi-D detector

35 cm x 43 cm x 1.9 cm; 3,3 kg;
Cesium iodide scintillator

MAX mini detector

24 cm x 30 cm x 1.6 cm;
1.6 kg; Cesium iodide scintillator

Digital Substraction Angiography

Online DSA with remasking, pixelshift, landmark, peak opacification and roadmap

SmartOrtho

Fully automated tilting technique for long leg and full spine imaging, up to 3 images

Room planning

System weight

Approx. 1745 kg

Room height

Min. 250 cm
